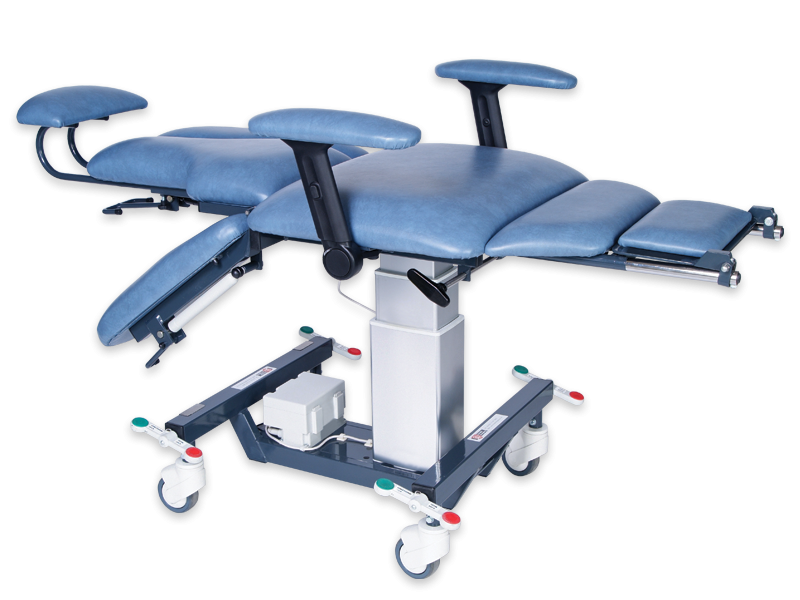

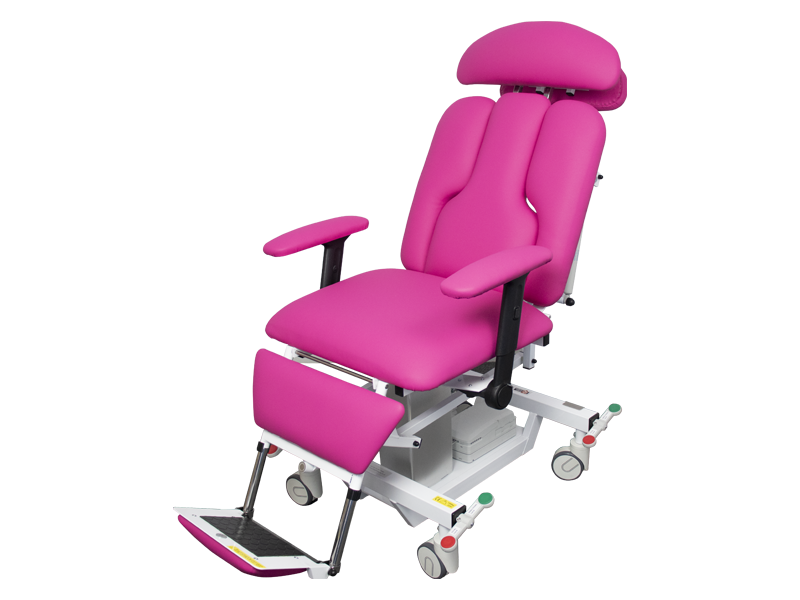

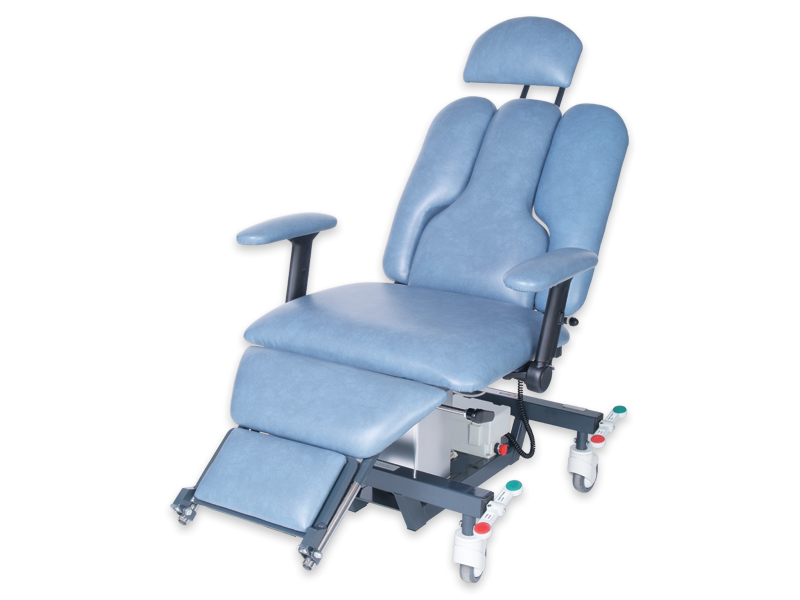

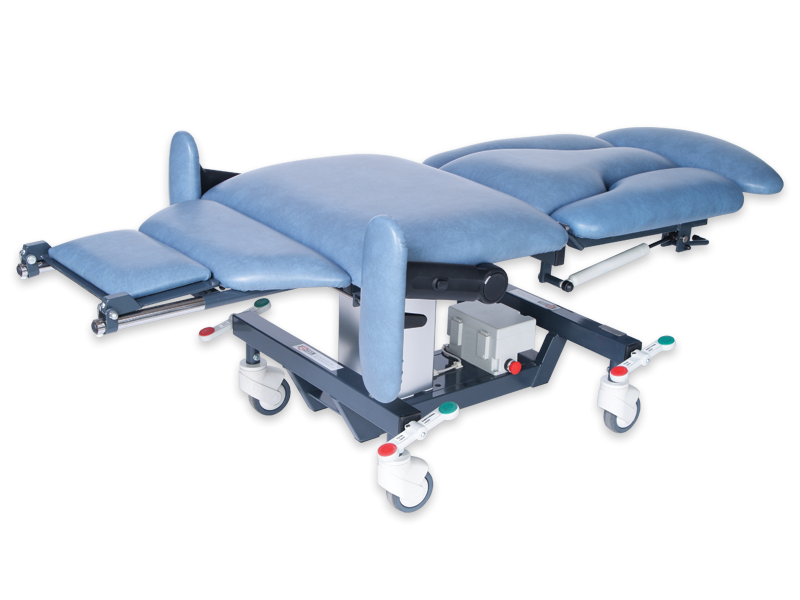

The specialist mammography chair
The Cardiff Chair is designed specifically for breast imaging in patients, who may also be less mobile. It can support a wide range of mammography procedures, including biopsy and stereotactic imaging, and combines clinical functionality with patient comfort and operator ease of use.
With fully adjustable armrests and a range of positional sections and surfaces, the Cardiff Chair enables accurate and efficient imaging from multiple angles. Its manually adjustable foot section and interchangeable headrest ensure optimal positioning for each individual patient.
Patient positioning and recovery
Battery-powered adjustment and manual Trendelenburg tilt assist with both patient positioning and recovery, while a smooth electronic handset makes repositioning easy for clinical staff. The rear brake system provides added safety and stability.
The Cardiff Chair features durable, antibacterial upholstery and a powder-coated steel frame to support infection control procedures. It is an ideal solutions for radiology departments, mobile imaging units, and breast screening clinics.
Features
- Designed to assist with imaging less mobile patients.
- Battery-powered, motorised height adjustment.
- Manual quick release to assist patient recovery.
- Fully adjustable rear side sections and armrests.
- Adjustable angle backrest from -5° to +90°
- Manually adjustable foot section with height adjustable footplate.
- Interchangeable headrest.
- 10 cm thick comfort foam.
- Anti-bacterial upholstery and paintwork.
- Castors can be set to steer front or rear, free movement, or locked in lateral pairs.
- Available in a range of upholstery colors.
Specifications
| Description | Dimensions |
|---|---|
| Height Range | 60 cm - 100 cm |
| Seat Width | 65 cm |
| Seat Depth | 50 cm |
| Maximum Weight Capacity | 140 kg |
Documents
-
Cardiff-Chair-EU-Version-1.2
Download (2.9 MB) -
Upholstery-Color-Swatch-for-Cardiff-Version-1.3
Download (81.3 kB)
